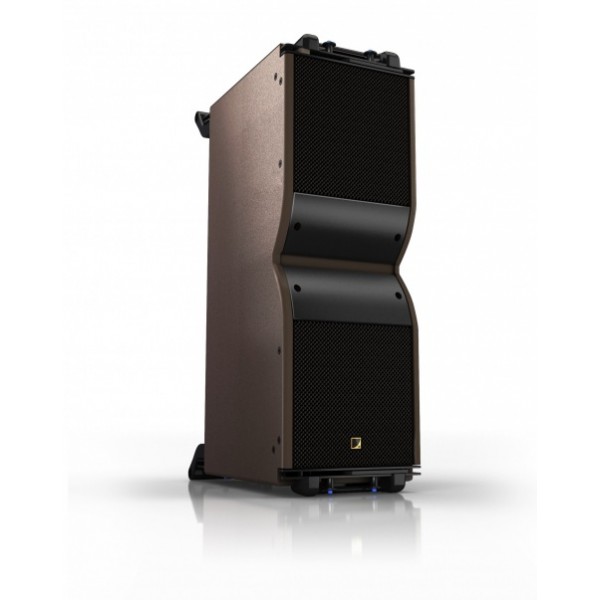

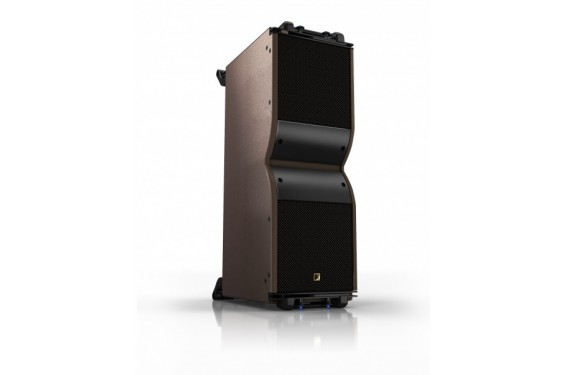

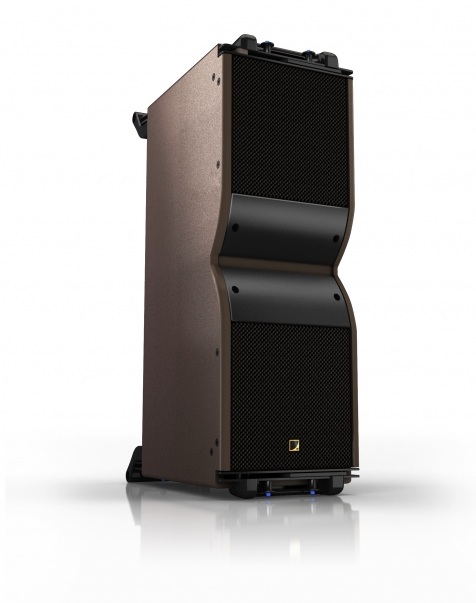

L-ACOUSTICS - Enceinte WST modulaire 2 voies KARAi - Version installation (Neuf)
KARAi
La ligne source modulaire KARAi opère sur la bande de fréquence 55 Hz - 20 kHz. La réponse en fréquence peut être étendue jusqu’à 32 Hz avec le renfort sub-grave SB18i.
KARAi est une enceinte active 2 voies comprenant deux haut-parleurs néodyme LF de 8” montés dans une enceinte bass-reflex. La section HF est composée d’un moteur néodyme à chambre de compression de diaphragme 3”chargé par un guide d’onde DOSC®.
La configuration coplanaire en K des transducteurs définit une couverture polaire horizontale de 110°, symétrique par rapport à l’axe de projection et sans lobes secondaires sur l’ensemble de la bande de fréquence. L’alliance d’une géométrie coplanaire et du guide d’onde DOSC® permet de remplir les cinq critères de la WST®. Le front d’onde d’une ligne KARAi peut-être modelé sans rupture et sans accident jusqu’à un maximum de 10° par élément mis en ligne.
L’enceinte KARAi est fabriquée en multiplis de bouleau balte de premier choix aux propriétés mécaniques et acoustiques remarquables. L’enceinte est conforme à l’indice de protection IP45 contre les corps solides et les liquides. Le système d’accrochage en quatre points permet de suspendre jusqu’à 12 enceintes KARAi dans une même ligne.
L’enceinte KARAi est pilotée et amplifiée par le contrôleur dédié L-ACOUSTICS LA8 qui assure linéarisation, protection intelligente, et optimisation dans trois modes d’exploitation :
• Le mode “LARGE BANDE” en utilisation en ligne source principale ou système distribué.
• Le mode “PASSE-HAUT” en renfort de proximité.
• Le mode “ EXTENSION GRAVE” en utilisation couplée au SB18i.
Les performances d’une enceinte KARAi dépendent du preset utilisé et de la configuration choisie.
Spécifications :
Bande passante utile(-10dB) : 55 Hz - 20 kHz (preset [KARA])
Directiviténominale (-6dB) :
Horizontale : Symétrique 110°
Verticale : Fonction du nombre d’éléments et de la courbure de la ligne source
Niveau SPL max1 : 139 dB (preset [KARA])
RMS longterme admissible : LF : 450 W HF : 80 W
Transducteurs :
LF : 2 x 8’’ néodyme
HF : 1 x 3’’ moteur néodyme à chambre de compression et diaphragme
Impédance nominale : LF = 8 ohms, HF = 8 ohms
Accrochage2 :
Acier, certifié pour 12 KARAi (conforme BGV-C1)
Pas angulaires : 0, 1, 2, 3, 4, 5, 7.5, 10°
Données physiques :
L x H/h x P : 713 x 250/186 x 380 mm / 28.1 x 9.8/7.3 x 15 in
Poids (net) : 23,5 kg - 51.7 lbs
Connecteurs : 2 embases Speakon® 4 points
Matériau : Multiplis de bouleau balte
Finition standard : Brun-gris RAL 8019® (KARAi) ou Blanc pur RAL 9010® (KARAiW)
Face avant : Grille en acier avec revêtement poudre polyester, tissu airnet® acoustiquement neutre
Indice de protection : IP45
Accrochage : Acier avec double revêtement poudre polyester et zinc
