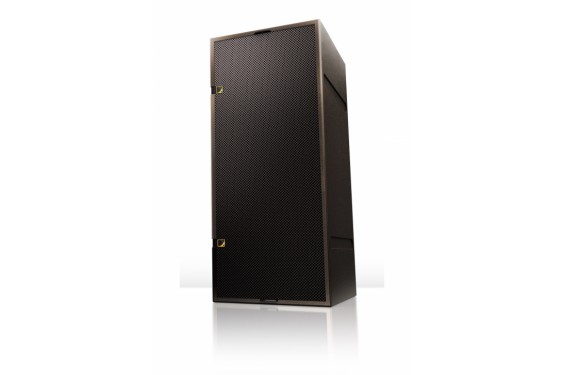

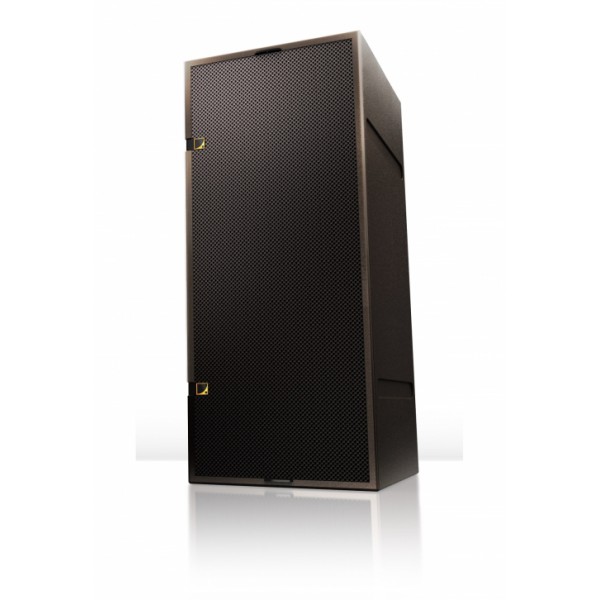

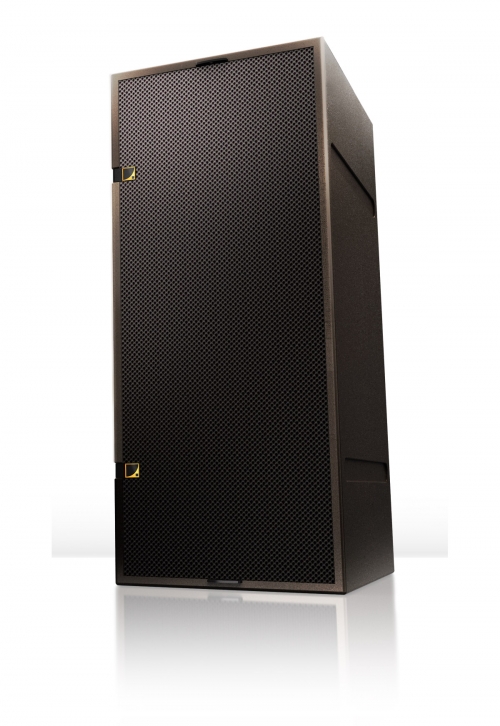

L-ACOUSTICS - Renfort de grave passif 2x18" SB28 (Neuf)
SB28
L’enceinte acoustique SB28 est un complément sub-grave recommandé pour les systèmes K1, KUDO®, V-DOSC® et ARCS®. Elle permet d’étendre la bande passante du système jusqu’à 25 Hz.
L’enceinte comprend l’assemblage de deux haut-parleurs de 18’’ en radiation directe dans une enceinte accordée en bass-reflex. Ces haut-parleurs offrent une capacité d’excursion exceptionnelle associée à une compression thermique faible même aux niveaux sonores les plus élevés.
Les évents bass-reflex possèdent un profil au contour progressif exclusif permettant un écoulement d’air laminaire. L’association de ces nouveaux haut-parleurs et évents se traduit par un gain SPL crête de l’ordre de 5 dB par rapport aux standards précédents.
L’enceinte SB28 est pilotée et amplifiée par le contrôleur dédié L-ACOUSTICS® LA8. Le filtrage numérique effectue l’égalisation du système, l’encadrement de la bande passante, tandis que le procédé d’asservissement L-DRIVE assure la protection thermique et administre les limites d’excursion des équipages mobiles des haut-parleurs.
Deux modes d’exploitation sont possibles :
• Le mode ‘‘standard’’ pour une utilisation en complément d’un système principal K1, V-DOSC®,
KUDO® et ARCS®, avec filtre passe-bas à 60 Hz (preset [SB28_60]) ou bien
ARCS® avec filtre passe-bas à 100 Hz (preset [SB28_100]) en configuration couplée
• Le mode ‘‘cardioïde’’ pour une utilisation en complément d’un système principal K1, V-DOSC®,
KUDO® et ARCS® avec filtre passe-bas à 60 Hz preset [SB28_60_C]) ou bien
ARCS® avec filtre passe-bas à 100 Hz (preset [SB28_100_C]) en configuration couplée
Les performances d’une enceinte SB28 dépendent du preset utilisé et de la configuration choisie.
L’ébénisterie est réalisée en multipli de bouleau balte de premier choix. Elle intègre des rails standard Aeroquip® pour l’accrochage en ligne verticale.
Spécifications :
Limite basse fréquence (-10dB) : 25 Hz (preset [SB28_100])
Puissance RMS long terme admissible : 1225 W
Niveau SPL max. : 140 dB (Preset [SB28_100])
Transducteurs : 2 x 18’’ traités contre l’humidité, (bobine 4’’, saladier en aluminium moulé, aimant ventilé)
Impédance nominale : 4 ohms
Levage : Acier, certifié pour 16 SB28 (conforme BGV-C1)
Données physiques :
H x L x P : 1300 x 550 x 700 mm - 51,2 x 21,7 x 27,6 in
Poids (net) : 93 kg - 205 lbs
Connexions : 1 embase Speakon 4 pts
Matériaux : multiplis de bouleau balte 18 mm et 24 mm
Finition : peinture teinte marron-gris RAL 8019®
Face avant : grille en acier avec revêtement poudre polyester, tissu Airnet® acoustiquement neutre
Accrochage: rails de levage et patins de posage intégrés
