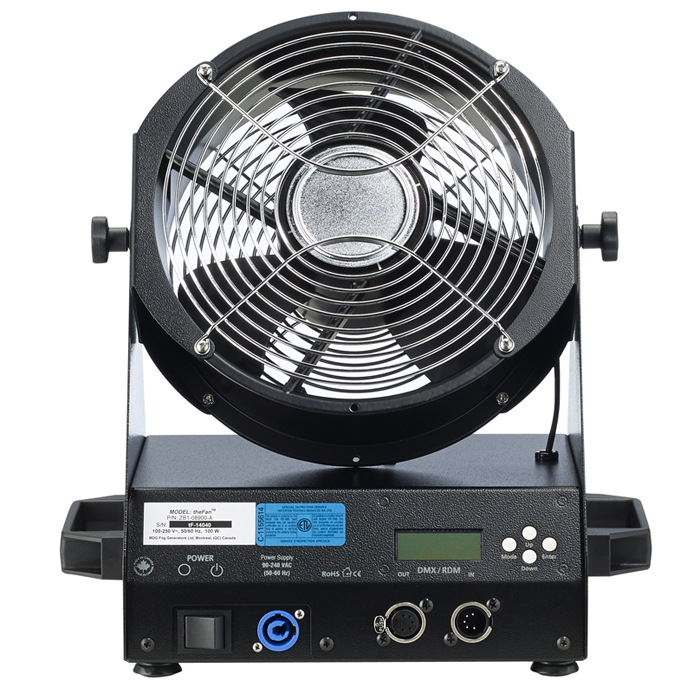

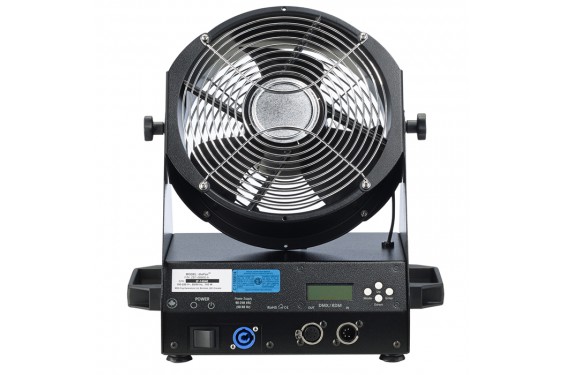

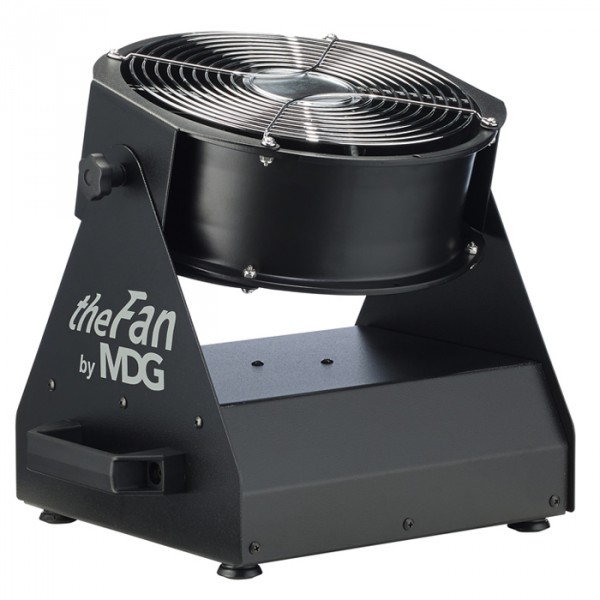

MDG - Digital Fan for atmospheric effect (New)

Low power consumption – only 100W – with controllable velocity via DMX or RDM, this ultra-compact stage fan can be used anywhere due to its universal switching power supply (100V- 240V, 50/60 Hz), either sitting on stage or hung from underneath your trussing (Omega bracket, metric and imperial-size clamp sockets).

Designed to work in tandem with our professional generators or as a stand alone.

Specifications :

Mechanical :

• 3-bladed fan

• 270º tilt

• Variable speed

• Airflow: 850 CFM

• Noise Level: 64db @ full speed

• Omega clamp socket

• M12 metric bolt hole

• 0.5” imperial bolt hole

• 2 handles

• 4-button controller with LCD panel

• Storage temperature: -40ºC to +90ºC

• Operating temperature: -20ºC to +75ºC

• Max static pressure: 0.83’’ H20

• Total net weight: 6.8kg (15 lb)

• Total net size: 381mm (15”) H x 345 mm (13.95”) W x 254mm (10”) D.

• Fan diameter: 264mm (10.4”)

Electrical :

• 100-240 VAC, 50/60 Hz, single phase.

• 100 Watts

• IEC 315/C15 UL/CSA /CE 14 AWG x3 cord

• Surge protected

Data :

• 1 standard USITT DMX512 channels

• 2 XLR-5 connectors: 1 input, 1 output.

• Controllable through DMX + RDM

Digital Functions :

• Stand alone set speed

• DMX Value
