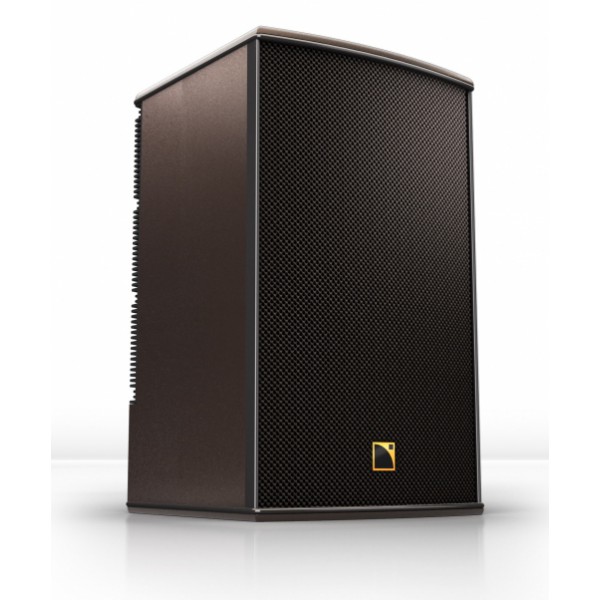

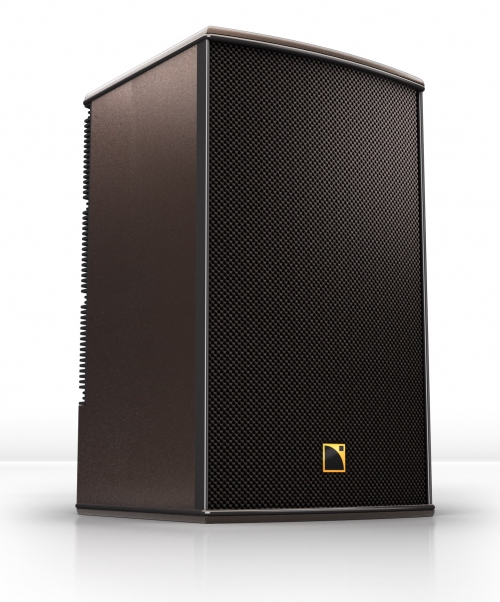

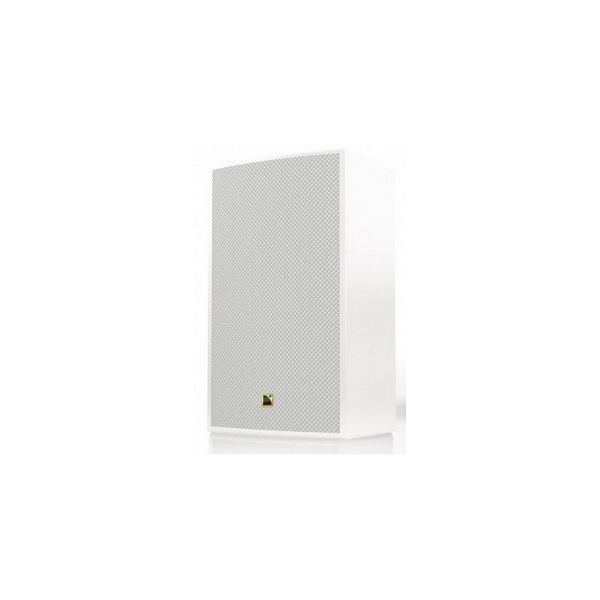

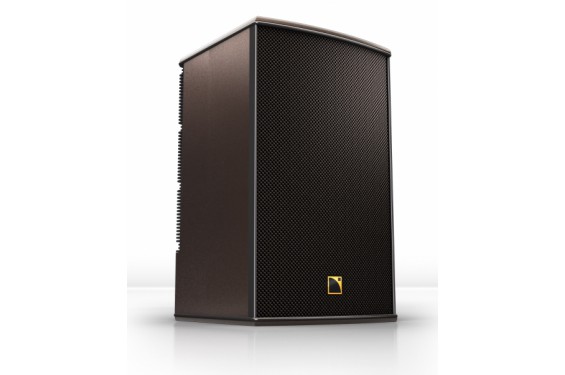

L ACOUSTICS - 108P - Self-powered compact coaxial - Finish white (New)
108PW
Self-Powered Compact Coaxial
- Ultimate sonic performance, clarity and precision
- Plug and play design for fast and easy set-up
- Compact and portable
- Sleek design, durable construction, extended longevity
- FOH, fill, monitor versatility for reduced inventory
- Coherent point source radiation with excellent performance off-axis
- White and architectural RAL color program
P SERIES
The L-ACOUSTICS® self-powered coaxial range offers a complete integrated system approach and has been designed to fulfill the highest audio expectations for a broad range of professional sound reinforcement applications.
This compact and versatile package combines all the benefits of on-board amplification, digital signal processing (DSP) and contemporary coaxial transducer technology. The P series both covers the needs of fixed installation by driving down the installation and system set-up costs, and simplifies the logistics for rental businesses with regard to easier storage, handling, transportation and inventory management.
As well as delivering cutting edge audio quality, the integrated amplification and DSP module offers comprehensive transducer protection, a precise system drive engine and optimized on-board preset library. The presets are instantly accessible and provide the sound designer with total creative freedom for any conceivable application.
Usable bandwidth
(-10dB)
55 Hz - 22 kHz ([FRONT] preset)
Nominal directivity
(-6dB)
100° Axi-symmetric
Maximum SPL*
125 dB ([FILL] preset)
Components
LF: 1 x 8’’ transducer mounted in a bass-reflex enclosure
HF: 1 x 1.5’’ diaphragm compression driver
Electrical specifications
Input stage: balanced, max level of +12 dBu (at 0 dB setting)
DSP: 24 bit/48 kHz
Amplifier power rating: LF: 1 x 500 W, 4 ohms, HF: 1 x 260 W, 8 ohms
Physical data
H x W x D: 421 x 250 x 299 mm - 16.6 x 9.8 x 11.8 in
Wedge angle: 30° from vertical
Weight (net): 13 kg - 28.6 lb.
Connectors: 2 x XLR in parallel, 2 x Powercon® 120 or 230 V selectable by switch
Material: 15 and 18 mm Baltic birch plywood
Finish: Grey-brown RAL 8019®
Front: polyester powder-coated steel grill, Airnet® acoustically neutral fabric
Rigging: integrated pole mount socket, optional ETR8-2 bracket
- 108P-112P-sb15P - User Manual EN
- XT-P - Hooking Manual FR.pdf
- 108P - System Datasheet.pdf
- 108P - Product Datasheet.pdf
L-ACOUSTICS - Membrane BM12 for 8XT (New)
Add to cart129.00€ HT
L-ACOUSTICS - Kit HP BM12 1.5" engine - 8 ohms for 108P/8XT/8XTi (New)
Add to cart140.00€ HT
L-ACOUSTICS - Kit Amplifier Module RI for 108P/112P/SB15p (New)
Add to cart605.00€ HT
L-ACOUSTICS - Kit DSP card RI - not configurated for 108P/112P/SB15p (New)
Add to cart190.00€ HT
L-ACOUSTICS - 10 timed fuses for ampli module & interface 110V or 220V (New)
Add to cart16.00€ HT
L-ACOUSTICS - Kit Interface with V2 presets for 108P (New)
Add to cart231.00€ HT
L-ACOUSTICS - Radiator 108P (New)
Add to cart175.00€ HT
L-ACOUSTICS - Plastic base for 108P/8XT/MTD108a - 2 pieces (New)
Add to cart29.00€ HT
L-ACOUSTICS - 1 small fabric front white Airnet series (New)
Add to cart12.00€ HT
L-ACOUSTICS - Kit of pad seal for 8" enclosure - White Finish (New)
Add to cart51.00€ HT
L-ACOUSTICS - Kit grid for 108P/8XT - White Finish (New)
Add to cart87.00€ HT
L-ACOUSTICS - HP PH83 loudspeaker 8" - 4 ohms for 108P (New)
Add to cart270.00€ HT
L-ACOUSTICS - Remembraning 8" kit for 108P (New)
Add to cart105.00€ HT
L-ACOUSTICS - Replacement kit of a small white logo (New)
Add to cart14.00€ HT
L-ACOUSTICS - Kit of connector board to hang for MTD/P series & 8XT - White Finish (New)
Add to cart51.00€ HT
L-ACOUSTICS - Kit connector plate for P series (New)
Add to cart225.00€ HT
L-ACOUSTICS - Command card for P Series (New)
Add to cart205.00€ HT
L-ACOUSTICS - Power cord CE for series P (New)
Add to cart26.00€ HT
L-ACOUSTICS - Carpentry kit for 108P - White Finish - On demand
Add to cart0.00€ HT
L-ACOUSTICS - Kit 5 x PFERRITE3 pour Série P (Neuf)
Add to cart51.00€ HT
L-ACOUSTICS - KR tissu 3D blanc avec support noir (Neuf)
Add to cart26.00€ HT
- Nous n’avons pas encore renseigné ces informations sur le site. Si vous souhaitez les recevoir contactez nous directement par Mail à contact@jsfrance.com
