L ACOUSTICS - 112P - Self-powered coaxial - Finish : white (New)
112PW
Self-Powered Coaxial
- Ultimate sonic performance, clarity and precision
- Plug and play design for fast and easy set-up
- Compact and portable
- Sleek design, durable construction, extended longevity
- FOH, fill, monitor versatility for reduced inventory
- Coherent point source radiation with excellent performance off-axis
- White and architectural RAL color program
P SERIES
This compact and versatile package combines all the benefits of on-board amplification, digital signal processing (DSP) and contemporary coaxial transducer technology. The P series both covers the needs of fixed installation by driving down the installation and system set-up costs, and simplifies the logistics for rental businesses with regard to easier storage, handling, transportation and inventory management.
As well as delivering cutting edge audio quality, the integrated amplification and DSP module offers comprehensive transducer protection, a precise system drive engine and optimized on-board preset library. The presets are instantly accessible and provide the sound designer with total creative freedom for any conceivable application.
Usable bandwidth
(-10dB)
50 Hz - 20 kHz ([FRONT] preset)
Nominal directivity
(-6dB)
90° Axi-symmetric
Maximum SPL
131 dB ([FILL] preset)
Components
LF: 1 x 12’’ transducer mounted in a bass-reflex enclosure
HF: 1 x 3’’ diaphragm compression driver
Electrical specifications
Input stage: balanced, max level of +12 dBu (at 0 dB setting)
DSP: 24 bit/48 kHz
Amplifier power rating: 1000 W, 8 ohms

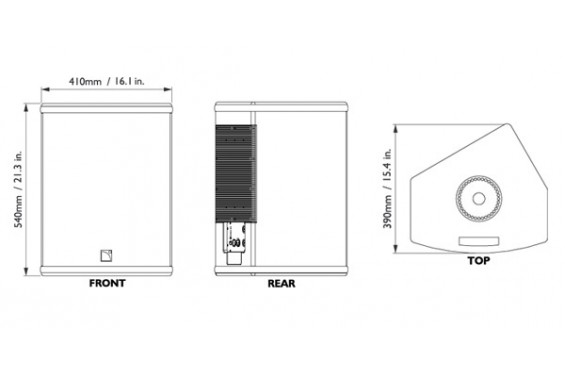

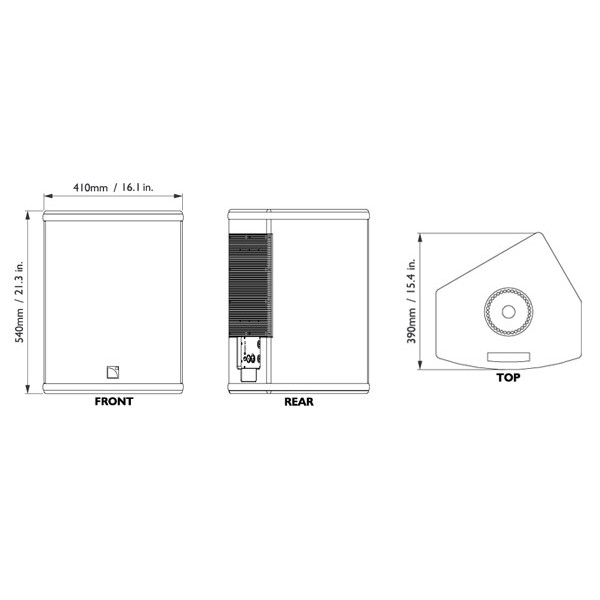

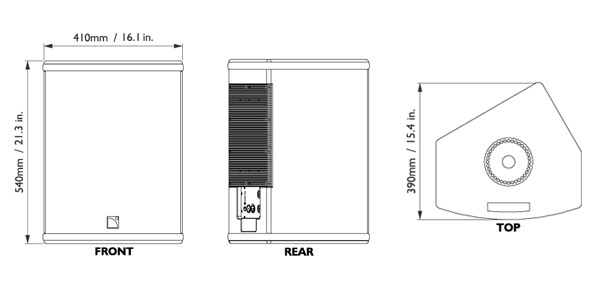

Physical data
H x W x D: 540 x 410 x 390 mm - 21.3 x 16.1 x 15.4 in
Wedge angle: 30° from vertical
Weight (net): 32 kg - 70.5 lb.
Connectors: 2 x XLR in parallel,
2 x Powercon® 120 or 230 V selectable by switch
Material: 18, 24 and 30 mm Baltic birch plywood
Finish: Grey-brown RAL 8019®
Front: polyester powder-coated steel grill, Airnet® acoustically neutral fabric
Rigging: integrated pole mount socket, optional ETR12-2 bracket and XTLIFTBAR accessory
- 108P-112P-sb15P - User Manual.pd
- XT-P - Hooking Manual.pdf
- 112P - System Datasheet.pdf
- 112P - Product Datasheet.pdf
