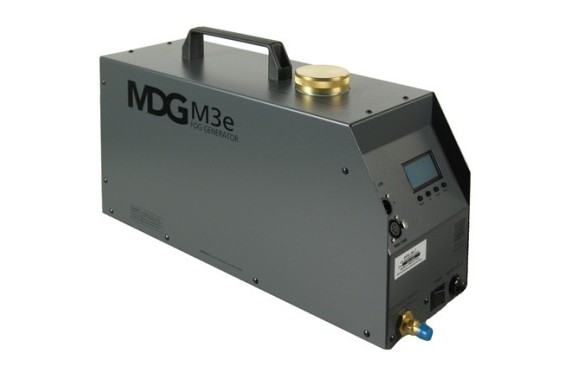

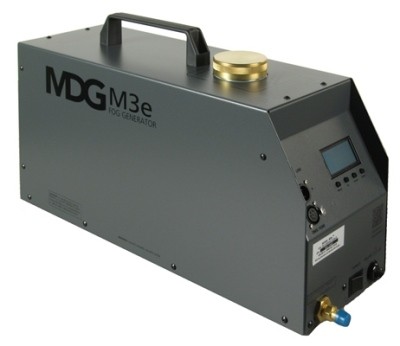

MDG - M3e Fog generator (New)

Introducing the natural evolution of the flagship MAX fog generators.

- Single high output

- 100% duty cycle

- Energy efficient (715w)

- Variable fog output

- Automatic Purging System^TM (APS^TM)

- RDM compliant device

Specifications :

Total Running Time :

- 1.3 hours at 2.76 bar / 40 psi

- 2.5 hours at 1.38 bar / 20 psi

Fog colour : Pure white

Particle size : 0.5 to 0.7 microns

Fluid consumption :

- 1.9 l (53.1 oz / 0.475 US gal) per hour at 2.76 bar / 40 psi

- 1.0 l (29.5 oz / 0.264 US gal) per hour at 1.38 bar / 20 psi

Fluid type : MDG NeutralTM Fog Fluid ONLY

Fluid reservoir : 2,5 l (0.66 US gal) bottle

Gas type : Industrial Grade CO2 or N2

Gas pressure input : 4.15 bar / 60 psi max

Gas consumption :

- 1.6 kg (3.53 lb) per hour at 2.76 bar / 40 psi

- 0.96 kg (2.12 lb) per hour at 1.38 bar / 20 psi

Automatic Purging System™: Standard feature

Warm-up time : 8 minutes

Operating voltage : 100-250 VAC, 50/60Hz, 1 phase

Ground / Earth connection REQUIRED

Power consumption : 715 W

Control signal :

- Manual (4 buttons keyboard + LCD)

- USB (diagnostic & Bootload)

- DMX / RDM Protocol

Operating temperature : 0 ˚C to 60 ˚C (32 ˚F to 140 ˚F)

Operating humidity : 90 % relative humidity @ 50 °˚C (122 ˚F), non-condensing

Storage temperature : -40 º C (-40 º F) to 140º C (284 º F)

Storage humidity 0% relative humidity @ 70 º C (158 º F)

Approval CE, CSA and UL pending

Dimensions : 30 cm (12”) H x 18 cm (7”) W x 61 cm (24”) L

Weight : 15.6 kg (35 lb)
