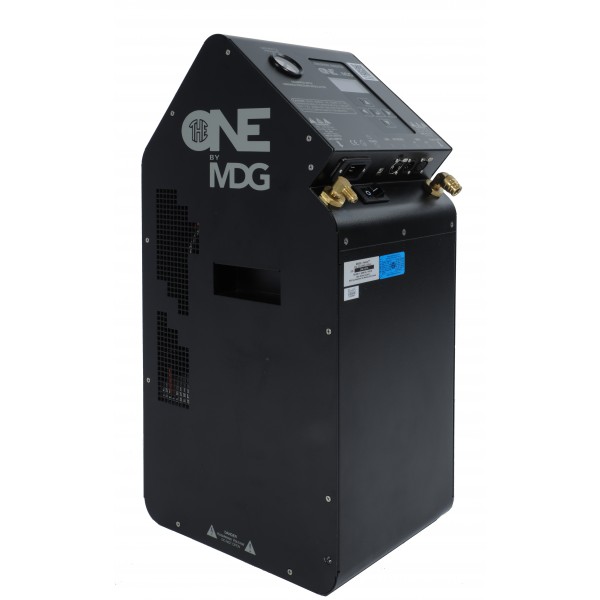

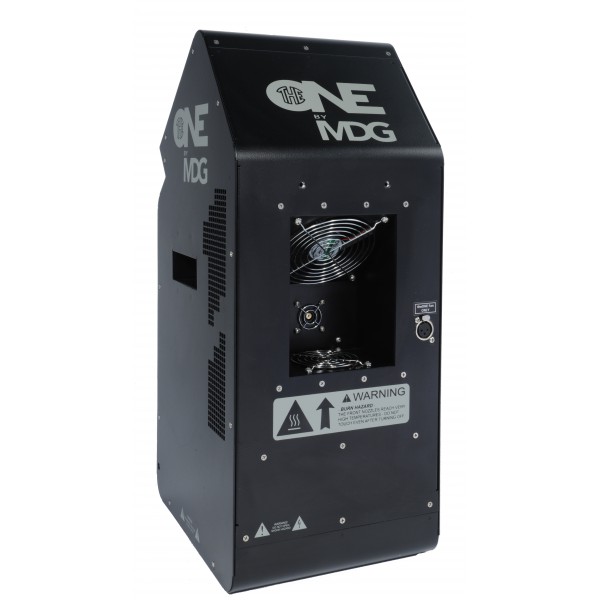

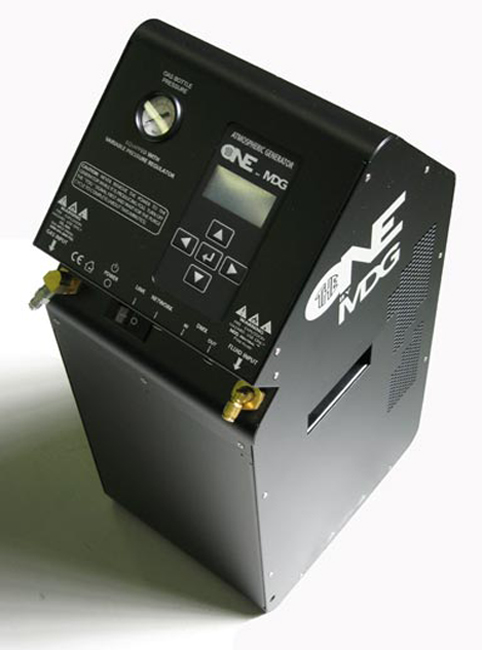

MDG - Digital Atmospheric Generator - TheONE standalone version (New)

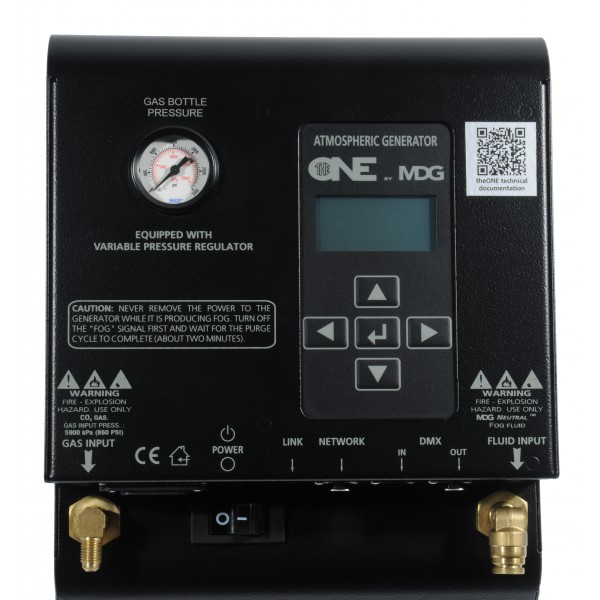

The theONE™ is a revolutionary, fully digital, dual mode fog/haze atmospheric generator. For the first time, this completely self-contained package (touring version) offers sophisticated control over atmospheric effects from a single source. Its simpleand efficient multi-level user interface, accessible from the backlit LCD panel, allows a simple switch between either mode seamlessly using various networking protocols. Each parameter is set into specific presets, but can be accessed and redefinedby advanced users.  The networking capability of the MDG theONE™ allows the user to install the generator as part of an existing ACN network.  Automatically refilling from an external 20 l (5.3 US gal) fluid container and with the two interconnected 9kg (20 lb) CO2 or N2 gas bottles, theONE™ was especially designed to give a maximum of consecutive, non-stop hours of fog/haze without service.  With the generator and its accessories (DMX fan, tool compartment) sitting in separate spaces in the optional rolling rack (touring version), for easier storage and transportation, the sturdy aluminium rack provides several rigging options for maximum freedom, making the MDG theONE™ especially fit for ready-to-go worldwide touring conditions. In a word, like in a thousand – theONE™… and only atmospheric generator you’ll ever need.

Specifications :

Fog Volume (per minute/max output) : 85 m3 (3000 ft3) on Fog mode

Total running time (Touring) :

Fog mode : 15 hours at 275 kPa / 40 psi

                    41 hours at 69 kPa / 10 psi

Haze mode : 50 hours at 207 kPa / 30 psi

                     120 hours at 69 kPa / 10 psi

Fog colour : Pure White

Particle size : 0.5 to O.7 microns

Fluid consumption :

Fog mode : 1 L (0.26 US gal) per hour at 275 kPa / 40 psi

                   0.5 L (0.12 US gal) per hour at 69 kPa / 10 psi

Haze mode : 55 mL (1.63 oz) per hour at 207 kPa / 30 psi

                     12 mL (0.35 oz) per hour at 69 kPa / 10 ps

Fluid type : MDG Neutral TM Fog Fluid ONLY

External fluid reservoir : 20 L (5.28 US gal) bottle

Gas type : Industrial Grade CO2 or N2

Gas pressure input : 17.2 MPa / 2500 psi

Gas consumption:

Fog Mode : 1.16 kg (2.56 lb) per hour at 275 kPa / 40 psi

                   0.44 kg (0.97 lb) per hour at 69 kPa / 10 psi

Haze Mode : 0.35 kg (0.77 lb) per hour at 207 kPa / 30 psi

                     0.15 kg (0.33 lb) per hour at 69 kPa / 10 psi

APS : Automatic Purging System

Warm-up time : Under 10 minutes

Operating voltage : 90-250 VAC, 50/60Hz, 1 phase

Power consumption : 1450 W

Control signal : Manual

- USB (diagnostic & Bootload)

- DMX / RDM Protocol

- ArtNet

- Pathport Protocol

- Strand Shownet

- ETC Net2 eDMX

- Streaming ACN (E1.31 sACN)/ETC Net3

Noise emission (at 1 m/3.3 ft) : 45 - 60 dB theONE Standalone

                                                  45 – 70 dB theONE Touring

Operating temperature: -30 °C (-22 °F) to 50 °C (122 ˚F)

Operating humidity: 90 % relative humidity @ 50 °˚C (122 ˚F), non-condensing

Storage temperature: -40 º C (-40 º F) to 140º C (284 º F)

Storage humidity: 80% relative humidity @ 70 º C (158 º F)

theONE Standalone :

- Dimensions : 61 cm (24”) H x 25 cm (10”) W x 30 cm (12”) D

- Weight : 23 kg (50 lb)

theONE + touring rack :

- Dimensions : 106 cm (42”) H x 76 cm (30”) W x 61 cm (24”) D

- Weight : 120 kg (265 lb)
