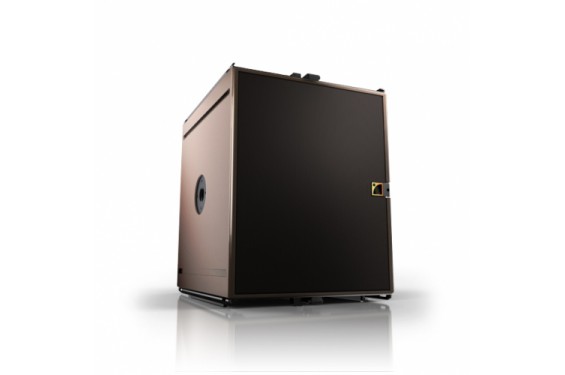

L-ACOUSITCS - Compact high power subwoofer Sb15m - RAL (New)

Specific Finish : code RAL on order.

The SB15m is the recommended subwoofer for the KIVA system and the XT coaxial series from L-ACOUSTICS®. It allows extending the system operating frequency range down to 40 Hz.

The SB15m features one direct radiating 15" speaker in a bass reflex tuned enclosure. It provides impact, sensitivity, low thermal compression and reduced distortion. The vent features a progressive profile allowing laminar airflow and reduced turbulence noise even at the highest operating levels. These combined properties contribute to the sonic qualities of the SB15m in terms of precision and musicality. The cabinet is made of first grade Baltic birch plywood to ensure maximum acoustical and mechanical integrity.

SB15m subwoofers can be flown or ground-stacked as a standalone array or within a vertical SB15m/KIVA array. A pole-mount socket is integrated into the cabinet, for the mounting of one XT enclosure or two KIVA enclosures.

The SB15m is driven and amplified by the LA4 or the LA8 controller. These ensure linearization, protection and optimization for the loudspeaker system in its different configurations, cardioid included.

Specifications :

Low frequency limit (‑10 dB) : 40 Hz ([SB15_100] preset)

Maximum SPL : 135 dB ([SB15_100] preset)

RMS power handling : 600 W

Transducer : 1 x 15" weather-resistant, bass-reflex

Nominal impedance : 8 Ω

Connectors :

IN: 1 x 4-point SpeakON®

LINK: 1 x 4-point SpeakON®

Rigging components : Integrated pole-mount socket - Coupling bars stored at handle position

Physical data :

W x H x D : 579 mm x 493 mm x 520 mm - 22.8 in x 17.3 in x 20.5 in

Weight (net) : 36 kg / 79.4 lb

Cabinet : Baltic birch plywood

Finish : Grey brown RAL 8019® or Pure White RAL 9010® - Custom RAL code on order

Front : Steel grill with anti-corrosion coating Airnet® acoustically neutral fabric

Protection Rating : IP45

Rigging Component : High strength steel with anti-corrosion coating
