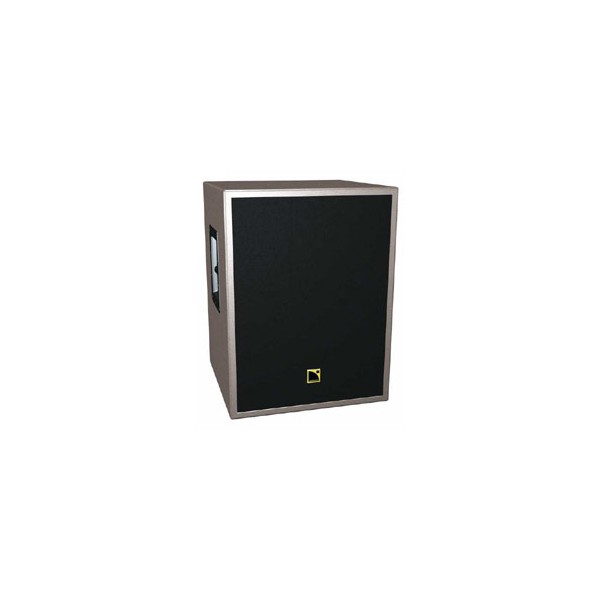

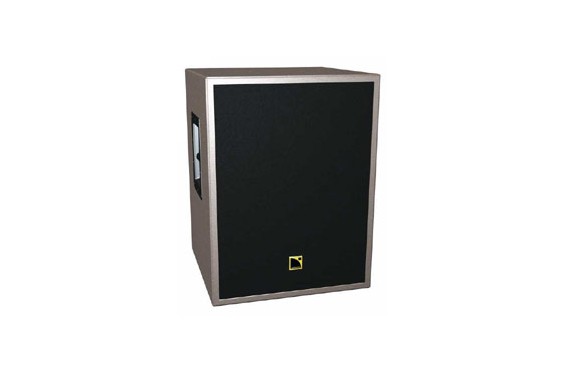

L ACOUSTICS - SB115 - Compact subwoofer (Used)
SB115-o
Single 15" subwoofer enclosure
Front-loaded, optimized bass reflex design
High power handling, low thermal compression
Compact dimensions, low profile
Designed for touring or fixed installation
Suitable for use with all L-ACOUSTICS MTD or XT enclosures
Signal processing via L-ACOUSTICS LLC analog controllers (MTD line) or
OEM factory presets for approved digital processors (XT line)
Optimized for 40 - 200 Hz bandwidth
Frequency Response
Frequency Response : 45 - 100 Hz (± 3 dB) (3W preset)
Usable Low Frequency : 40 Hz (-10 dB)
Recommended filtering :
100 to 200 Hz (4th order low pass filter)
40 Hz (4th order high pass filter)
Sensitivity
(2.83 Vrms @ 1m) - 94 dB SPL - 45-200 Hz
Power Rating
45 Vrms - 250 Wrms - 1000 Wpeak - 500 W - 8 ohms
Array
SPL
One enclosure : 120 dB (cont) 126 dB (peak) (3W preset)
Two enclosures : 126 dB (cont) 132 dB (peak)
Four enclosures : 132 dB (cont) 138 dB (peak)
Components
LF : 1 x 15" weatherproof loudspeaker
Enclosure
Width : 440 mm - 17.3 in
Height : 580 mm - 22.8 in
Depth : 425 mm - 16.7 in
Net Weight : 29 kg - 63.9 lbs
Shipping Weight : 33 kg - 72.8 lbs
Shipping Dims : 655 x 500 x 570 mm - 25.8 x 19.7 x 22.4 in
Connectors : 2x 4-pin Neutrik speakon
Material : 18 mm Baltic birch plywood
Finish : Maroon-grayô
Grill : Black epoxy perforated steel with acoustically transparent foam
Rigging : Integrated flying hardware and handles
